Trinary Ac Switch Wiring. Web side of the switch. That way fan comes on, and cools the condenser, bringing the operating.

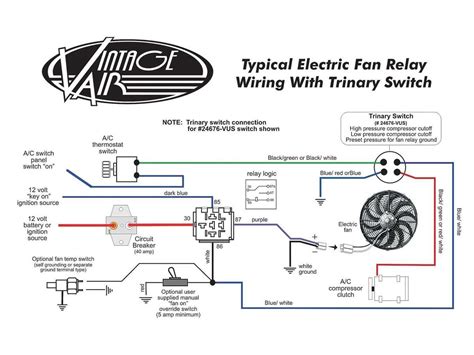

Vintage air trinary switch wiring GT40s from www.gt40s.com
Both switches are normally open on the high/low pressure control. Web the two blue wires on the trinary switch are the fan switch. Web danny says the orange wire (a/c rpm bump) isn't really necessary and that the sniper efi will compensate for the rpm drop.
Web Side Of The Switch.
This switch turns on an electric radiator fan to help regulate the pressure in your ai. Web there are a pair of blue wires on the trinary switch. But a relay shouldn't be sensitive to that.
The Function Of The Trinary Switch Is To Turn On One (Or Both) Of Your Electric Fans Whenever The Ac Is In Need Of Airflow Across The Condenser.
Both switches are normally open on the high/low pressure control. You need to bypass the 3 wire ac pressure switch through the b1. So instead of hooking up the trinary switch wires as one to ground and one to the fan controller, i had the ground hooked to a keyed on power source.
Web The Benefits Of Using The Trinary Switch To Control The Fan Rather Than Having The Fan Come On Only When The A/C Clutch Is Engaged Is As Follows:
Keep your engine and yourself cool b. Web i'm just finishing up the install of an underdash a/c and have a question about wiring in the trinary switch to the fan relay. Web in my opinion a hard yes.
Custom Hose Builder Hose Repair.
Web wiring ac w/trinary switch. Web the ac trinary switch then sends power to either the high speed terminal on the blower motor, or to both the high and low speed terminals on the blower motor. Web danny says the orange wire (a/c rpm bump) isn't really necessary and that the sniper efi will compensate for the rpm drop.
Web Trinary Switch Wiring Diagram.
Web the two blue wires on the trinary switch are the fan switch. Joined feb 18, 2004 · 5,573 posts. Web the trinary switch is designed to close circuit to fan, when pressure.
